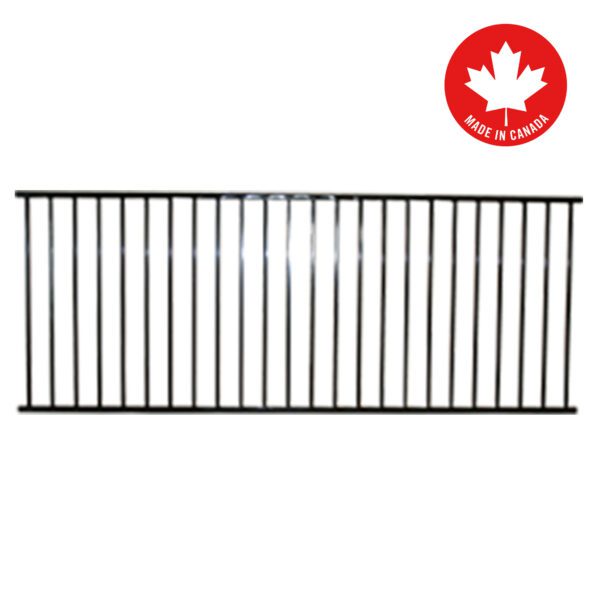

Our Garnet fence profile accents modern to traditional projects and is characterized by sleek, clean lines and a classic style.
- Nuvo Iron fencing is backed by high quality materials you can depend on and a fabrication process perfected over time. From classic and traditional to modern and bold, our wide variety of styles makes choosing a profile that accents your outdoor space simple. Whether you’re a homeowner or a contractor, our team will make sure you’re more than happy with the finished product.
- We manufacture a wide selection of iron fence profiles to accommodate a variety of outdoor spaces. Committed to superior quality, our multi-layer protective coating process ensures the durability and premium finish the Nuvo brand is known for.
Get Your Iron Fence Project Started
- Find a reputable installer or dealer through our Where to Buy page
- Fill out the Nuvo Iron Quote Form and provide it to your installer or dealer.
- Have your installer or dealer complete the form and then submit it to Nuvo Iron for an estimate.
IRON FEATURES
POST, RAILS & PICKETS
- Cold Formed Steel Tubing Exterior and Interior GalvalumeTM Coating
- Chromate Conversion Coating
- Electrostatically applied
- Thermally Bonded Polyester Powder Coating
- Minimum Film Thickness 2.5 mm
- E-coated
POSTS
- 2″ X 2″ (51mm x 51mm) 16 Gauge
- Standard Post Spacing 97 3/4″ (2483 mm) O.C.
RAILS
- 1″ x 1″ (25mm x 25mm) 14 Gauge
PICKETS
- 5/8″ x 5/8″ (16mm x 16mm) 18 Gauge
FITTINGS
WELDS
STANDARD PANEL WIDTH
STANDARD PANEL HEIGHTS
- 48″ (1219mm)
- 50″ (1270mm)
- 60″ (1524mm)
- 70″ (1778mm)
– Optional Heights Available Upon Request*
STANDARD SINGLE GATE OPENINGS INSIDE POSTS
- 40″ (1016mm)
- 48 1/4″ (1226mm)
- 56 1/4″ (1429mm)
– Optional Gate Opening Available Upon Request
– Optional Lock Box Available
ALUMINUM SPECIFICATIONS
POST, RAILS & PICKETS
- Cold Formed Steel Tubing Exterior and Interior GalvalumeTM Coating
- Chromate Conversion Coating
- Electrostatically applied
- Thermally Bonded Polyester Powder Coating
- Minimum Film Thickness 2.5 mm
POSTS
- 2” x 2” (51mm x 51mm) .125 wall
- Standard Post Spacing 97 3/4” (2483mm) O.C.
RAILS
- 1” x 1” (25mm x 25mm) .180 wall
PICKETS
- 5/8” x 5/8” (16mm x 16mm) 0.80 wall
FITTINGS
WELDS
STANDARD PANEL WIDTH
STANDARD PANEL HEIGHTS
- 48″ (1219mm)
- 60″ (1524mm)
- 70″ (1778mm)
– Optional Heights Available Upon Request*
STANDARD SINGLE GATE OPENINGS INSIDE POSTS
- 40″ (1016mm)
- 48 1/4″ (1226mm)
- 56 1/4″ (1429mm)
– Optional Gate Opening Available Upon Request
– Optional Lock Box Available
